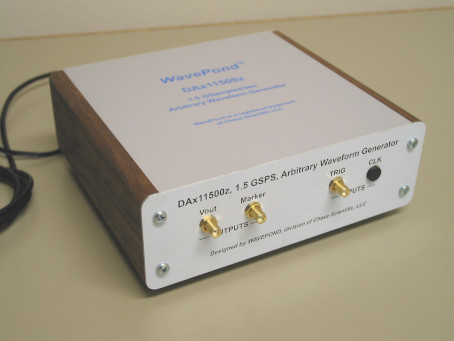

DAx11500z, 1.5 GS/sec, 9-bit Arbitrary Waveform Generator [ USB Controlled ]
The DAx11500z is a 1-CH, 1.5 GS/sec, 9-bit Arbitrary Waveform Generator. It has a programmable clock source that covers 25 MS/sec to 1.5 GS/sec, 8K Samples Memory, internal / external triggering, and one marker outputs. See below for the product brief, manual, and software drivers.
Software Drivers and Documentation
| File Name | Description |
|---|---|
| dax11500_ds.pdf | Data Sheet for DAx11500z. |
| dax11500z_manual.pdf | User Manual for DAx11500 and DAx11000. |
| dax115.zip | GUI and Drivers for DAx11500z, DAx11000z (Windows 10/11) |
| sine_fitter.zip | Sine Wave Fitter for DAx11500z (Windows 10/11) |
