CG6000, 2-CH, 25 MHz to 6.0 GHz Clock Generator [ USB, PCI, PCIe ]

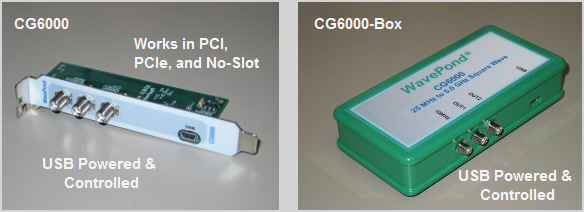

The standard CG6000 is a 2-CH, 25 MHz to 6.0 GHz clock generator. Each channel can be programmed to a different frequency up to 6.0 GHz. It comes in a USB controlled box (standard) but can also fit into a PCI or PCIe slot. The CG6000 produces a psuedo squarewave output with 1ppm accuracy with less than 5psec of jitter. Amplitude is software programmable from -4dBm to +5dBm. See below for the product brief, manual, and software drivers.
[See bottom of page for CG6000-IL drivers. This is DIFFERENT than the standard CG6000. It is an experimental version with two outputs same clock. NOT for public.]
Click HERE for pricing.
Software Drivers and Documentation
| File Name | Description |
|---|---|
| cg6000_ds.pdf | Data Sheet for CG6000. |
| cg6000_manual.pdf | User Manual for CG6000. |
| cg6000_user_sw.zip | GUI and Drivers for CG6000. ( Windows XP/7/8/10 ) |
| CG6000_4GHz.pdf | GUI Screen Shot. |
| cg6000_IL_user_sw.zip | Experimental (Only for CG6000-IL ): GUI / Drivers for CG6000-IL. ( Windows XP/7/8/10 ) |
